Push-in vs. Spring vs. Screw Terminal Blocks: Which Should You Choose?

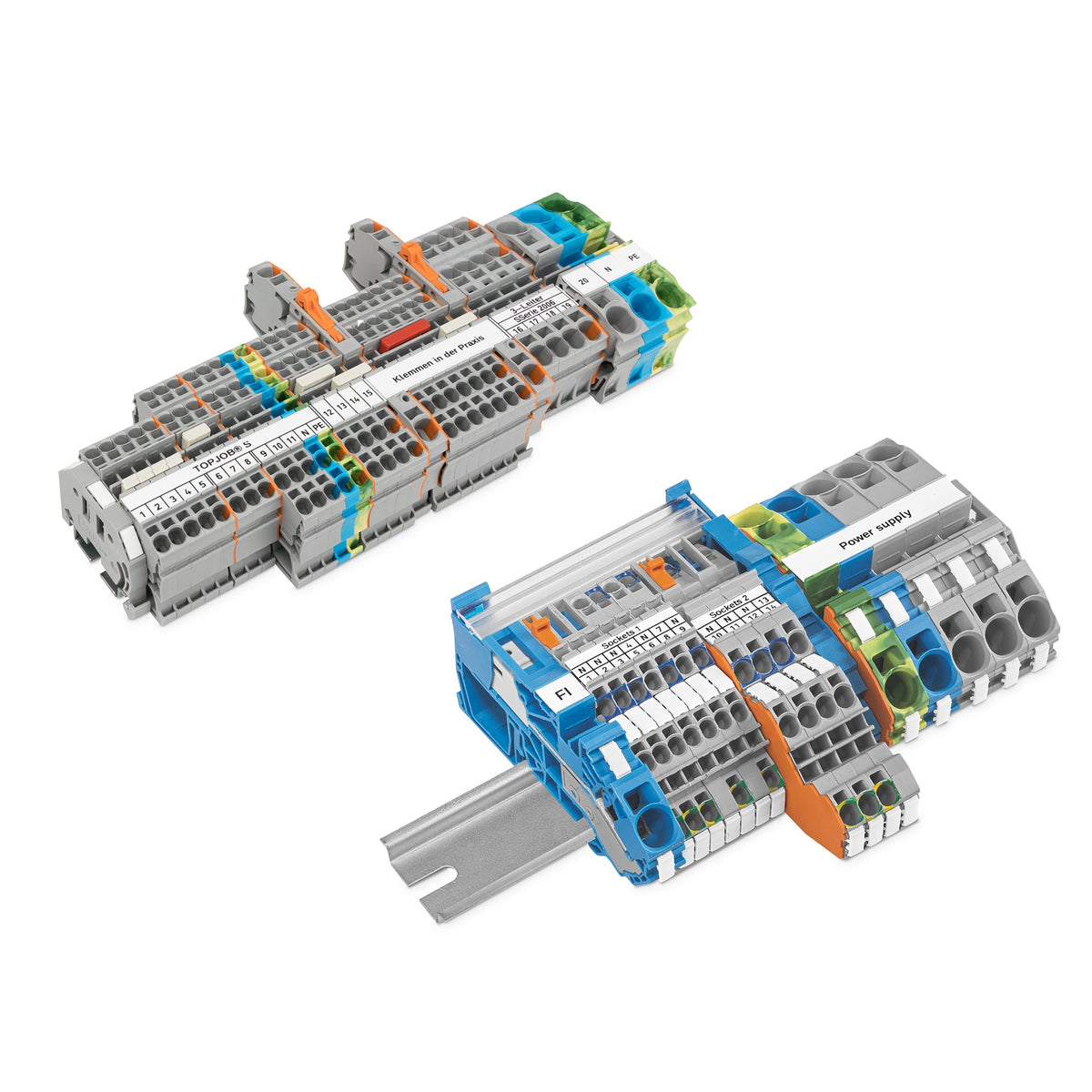

WAGO TOPJOB S push-in rail-mount terminal blocks on a DIN rail

If you're choosing terminal blocks for a control panel, here's the quick answer. Push-in blocks are usually fastest for solid wire and ferruled fine-stranded wire. Spring-clamp blocks (WAGO's CAGE CLAMP®) take almost any copper conductor, ferrules optional, and you open the clamp with a tool. Screw blocks are the familiar option, but each one has to be tightened to the right torque and checked over time. Many modern panels use push-in for most of the I/O and control wiring, with spring clamp wherever bare fine-stranded wire is common.

Below we go through how each type works, where each one fits, and what to check on the data sheet before you order.

How each connection type works

Screw terminals

You insert the stripped wire and tighten a screw that presses it against a current bar. A good connection depends on the torque: WAGO points out that the result can depend on the installer's strength and on whether a torque screwdriver is used at all. That's why manufacturers recommend following their torque values with the proper tool [7]. WAGO also notes that some screw connections need routine checks to make sure they haven't loosened over time [7].

Spring-clamp terminals (CAGE CLAMP®)

A spring pushes the conductor against the current bar. You open the clamp with an operating tool, insert the wire, then release the clamp. WAGO's classic 281-101 through terminal block is a good example. It takes solid and fine-stranded conductors from 0.08 to 4 mm² (28–12 AWG) and strips at 9–10 mm. WAGO says that "you do not need to prepare the conductor in any way, such as crimping ferrules" [4]. WAGO describes the spring clamp as automatically adapting to the conductor size and type, and as maintenance-free [6].

Push-in terminals (Push-in CAGE CLAMP®)

Push-in builds on the same spring idea, but you can push solid conductors, stranded conductors, and fine-stranded conductors with gas-tight crimped ferrules straight in. No tool is needed. On WAGO's TOPJOB® S blocks, conductors from two sizes below the rated cross-section up to the rated cross-section can be pushed in directly. For other conductors, such as fine-stranded wire with tinned single strands, you open the clamp first with the operating tool [1].

The WAGO 2002-1201 (2.5 mm² nominal) shows what this means in practice. Solid wire from 18–12 AWG pushes straight in, and ferruled fine-stranded wire from 18–14 AWG does too. The full solid range is 22–12 AWG. Strip length is 10–12 mm [3].

Side-by-side: two WAGO examples

WAGO 281-101 (CAGE CLAMP®) WAGO 2002-1201 (Push-in CAGE CLAMP®)
Actuation Operating tool [4] Operating tool; push-in for qualifying conductors [3]
Conductor range 0.08–4 mm² / 28–12 AWG, solid and fine-stranded [4] 0.25–4 mm² / 22–12 AWG, solid, stranded and fine-stranded [3]
Push-in range n/a Solid 18–12 AWG; ferruled 18–14 AWG [3]
Strip length 9–10 mm [4] 10–12 mm [3]
Width 6 mm [4] 5.2 mm [3]
Ratings 800 V / 32 A (IEC/EN 60947-7-1) [4] 800 V / 24 A (IEC/EN 60947-7-1); 600 V / 20 A (UL 1059) [3]

Always confirm the exact ratings on the data sheet for the part number you're ordering. Ratings vary by size and by approval.

When push-in is the right call

  • High-volume panel wiring. Most of your conductors will be solid or ferruled, so the push-in feature saves a step on almost every termination. TOPJOB® S comes in lever, push-button and operating-slot versions, and WAGO says all of them are well suited to automated wiring [2].
  • Building and distribution panels. WAGO notes that push-in termination removes the need to retighten screws during operation, and removes errors such as over-tightening [8].
  • Mixed teams. Push-button versions let you open the clamp with any common tool. They come in nominal sizes from 1 to 16 mm² (18–6 AWG) [1].

When classic spring clamp is the right call

  • Lots of bare fine-stranded wire. CAGE CLAMP® takes solid, stranded and fine-stranded conductors without pretreatment; ferrules can be used but aren't required [6].
  • Vibration and long service life. WAGO describes its spring connection as vibration-proof and maintenance-free [5]. It also reports that terminal blocks tested after about 30 years in railway service showed no contact breaks, wear or corrosion [6].

When screw terminals still show up

Screw terminals are still common, often because a spec or an existing standard calls for them, or because the team knows them well. If you use them, budget time for tightening to the manufacturer's torque value and for periodic checks [7]. If you're weighing a switch, WAGO cites public wiring competitions and customer time studies that found screwless wiring up to 264% faster than screw clamp connections. That's WAGO's own figure, and your results will depend on the job [7].

A quick buyer's checklist

  1. Conductor type and size. Is it solid, stranded, or fine-stranded with or without ferrules? Check the push-in range, not just the full range.
  2. Approvals you need. For example, UL 1059 ratings for North American panels.
  3. Strip length. It differs by series (9–10 mm vs. 10–12 mm in the examples above).
  4. Accessories. Jumpers, end plates, markers and the right operating tool.
  5. Special functions. Fuse, disconnect, ground and multi-deck blocks.

FAQ

Is push-in the same as spring clamp? Push-in is a type of spring-pressure connection. WAGO's Push-in CAGE CLAMP® adds direct, tool-free insertion for qualifying conductors [1].

Do I need ferrules? Not for CAGE CLAMP® blocks like the 281-101 [4]. For push-in, fine-stranded wire needs a gas-tight crimped ferrule if you want to push it in without a tool. Otherwise, open the clamp first [1].

How do I remove a wire from a push-in block? Open the clamping unit with the lever, push-button or operating tool, depending on the variant [2].

Are spring terminals maintenance-free? WAGO describes its spring-pressure connections as maintenance-free [5].

Shop WAGO terminal blocks at USAC

Let's spec your next panel together

Have a bill of materials, a cross-reference, or a series you're trying to match? Send it our way. We're happy to help you choose the right connection type and put together a quote. Email sales@usac123.com, call (973) 376-6315, or visit usac123.com.
