Leuze

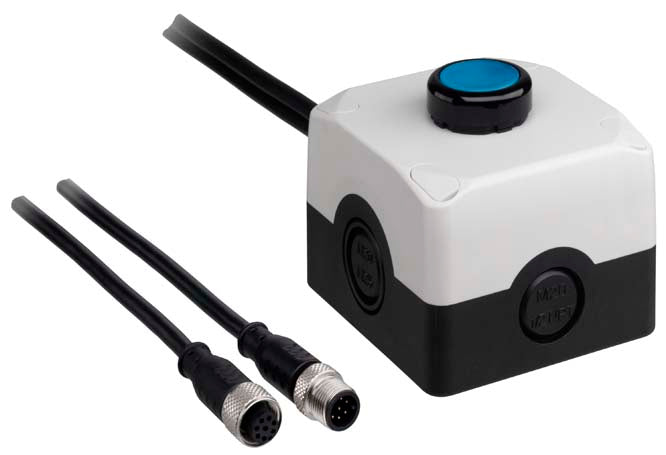

Leuze 426296 AC-ABF70 Acknowledgment unit
Part number: 426296
$261.96
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Suitable for: MLD 500, MLD 300 multiple light beam safety devices, MLC 500, MLC 300 safety light curtains
Functions: Reset of the start/restart interlock, Illuminated reset buttons, Overriding with AOPDs with muting function
Reset buttons: Yes
LED indicators: Yes
Switching current via button: 1 ... 1,000 mA
Housing material: Glass fiber reinforced (PPS), self-extinguishing
Clamping plate material: Stainless steel
Degree of protection: IP 67, IP 69K
Functions: Reset of the start/restart interlock, Illuminated reset buttons, Overriding with AOPDs with muting function
Reset buttons: Yes
LED indicators: Yes
Switching current via button: 1 ... 1,000 mA
Housing material: Glass fiber reinforced (PPS), self-extinguishing
Clamping plate material: Stainless steel
Degree of protection: IP 67, IP 69K
