Leuze

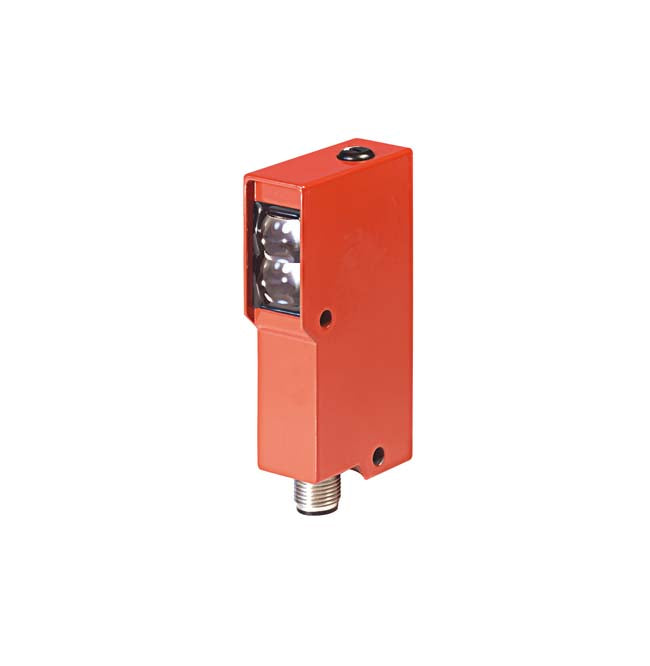

Leuze 50020358 IPRK 92/4 S.1 Polarized retro-reflective photoelectric sensor
Part number: 50020358
$947.94
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Warning output
Operating range limit: 0.2 ... 12.5 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light/dark switchable
Switching output 2: Transistor, PNP, UB switching
Switching frequency: 500 Hz
Connection: Standard plug, 6 -pin
Design, housing: Cubic
Dimensions: 20 mm x 80 mm x 42.2 mm
Housing material: Metal
Ambient temperature, operation: -20 ... 60 °C
Degree of protection: IP 65
Operating range limit: 0.2 ... 12.5 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light/dark switchable
Switching output 2: Transistor, PNP, UB switching
Switching frequency: 500 Hz
Connection: Standard plug, 6 -pin
Design, housing: Cubic
Dimensions: 20 mm x 80 mm x 42.2 mm
Housing material: Metal
Ambient temperature, operation: -20 ... 60 °C
Degree of protection: IP 65
