Leuze

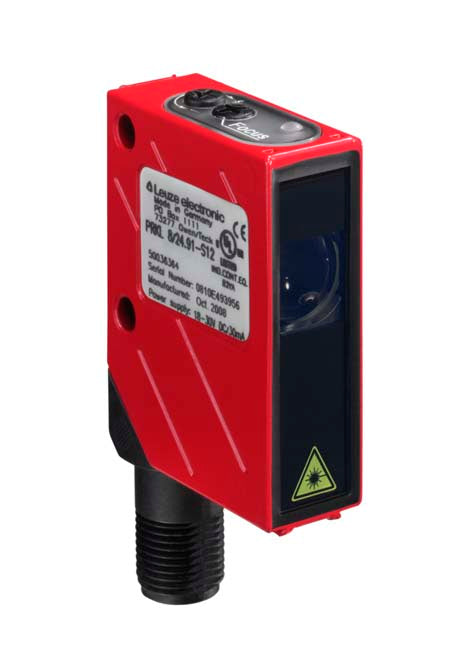

Leuze 50036365 PRKL 8/24.91 Polarized retro-reflective photoelectric sensor
Part number: 50036365
$798.09
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Autocollimation
Operating range limit: 0 ... 21 m
Light source: Laser, Red
Protection class: 2
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, NPN, Light switching
Switching frequency: 2,800 Hz
Connection: Cable, 2,000 mm, 5 -wire
Design, housing: Cubic
Dimensions: 15 mm x 48 mm x 38 mm
Housing material: Metal
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -10 ... 40 °C
Degree of protection: IP 67, IP 69K
Operating range limit: 0 ... 21 m
Light source: Laser, Red
Protection class: 2
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, NPN, Light switching
Switching frequency: 2,800 Hz
Connection: Cable, 2,000 mm, 5 -wire
Design, housing: Cubic
Dimensions: 15 mm x 48 mm x 38 mm
Housing material: Metal
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -10 ... 40 °C
Degree of protection: IP 67, IP 69K
