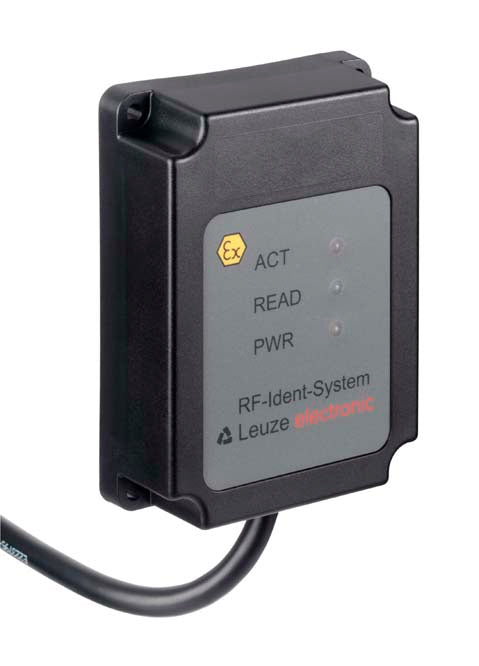

Leuze 50103087 RFM 32 SL 200 Ex-n RFID read/write device
Part number: 50103087
$2,289.65
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Working frequency: 13.56 MHz
Functions: LED indicator, Configurable operating modes, I/O, Reading gate control
Reading/writing range, max.: 110 mm
Supply voltage: 12 ... 30 V, DC
Interface: RS 232
Connection: Cable with socket connectors (10+6), 10,000 mm
Design: Cubic
Dimensions: 76 mm x 30 mm x 102 mm
Ambient temperature, operation: -25 ... 60 °C
Ex device group: II
Degree of protection: IP 67
Functions: LED indicator, Configurable operating modes, I/O, Reading gate control
Reading/writing range, max.: 110 mm
Supply voltage: 12 ... 30 V, DC
Interface: RS 232
Connection: Cable with socket connectors (10+6), 10,000 mm
Design: Cubic
Dimensions: 76 mm x 30 mm x 102 mm
Ambient temperature, operation: -25 ... 60 °C
Ex device group: II
Degree of protection: IP 67
