Leuze

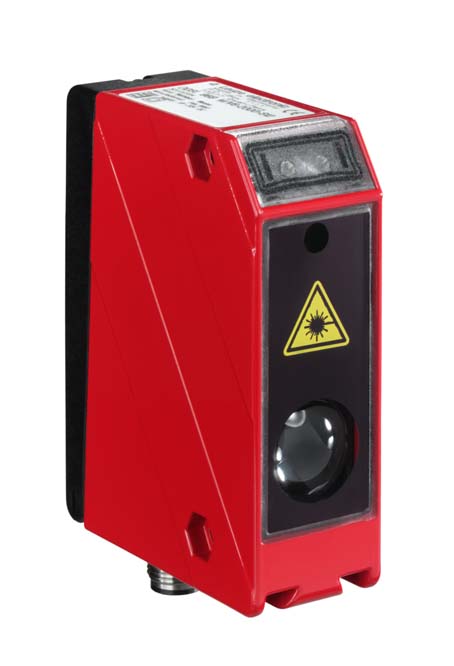

Leuze 50106597 ODSL 96B M/D26-2000-S12 Optical distance sensor
Part number: 50106597
$1,546.72
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Scanning system: Against object
Light source: Laser, Red
Light spot size: 2 mm x 6 mm
Measurement range: 150 ... 2,000 mm
Geometric resolution: 1.0 ... 3.0 mm
Accuracy: 1.5 %
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Interface: RS 232
Connection: M12, 5 -pin
Dimensions: 30 mm x 90 mm x 70 mm
Operational controls: PC software, Membrane keyboard
Light source: Laser, Red
Light spot size: 2 mm x 6 mm
Measurement range: 150 ... 2,000 mm
Geometric resolution: 1.0 ... 3.0 mm
Accuracy: 1.5 %
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Interface: RS 232
Connection: M12, 5 -pin
Dimensions: 30 mm x 90 mm x 70 mm
Operational controls: PC software, Membrane keyboard
