Leuze

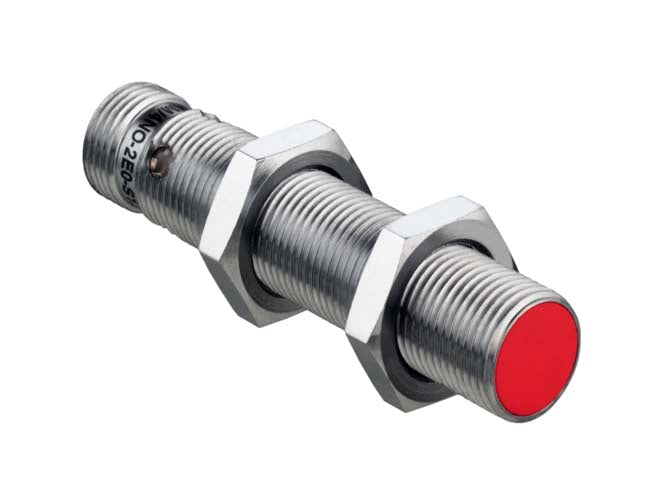

Leuze 50109673 IS 212MM/4NO-4E0-S12 Inductive switch
Part number: 50109673
$80.50
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Typ. operating range limit Sn: 4 mm
Operating range Sa: 0 ... 3.2 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching frequency: 2,500 Hz
Connection: Connector, M12, 4 -pin
Design, housing: Cylindrical
Dimensions: 12 mm x 60 mm
Thread size: M12
Type of installation: Embedded/flush
Housing material: Metal
Certifications: c UL US
Operating range Sa: 0 ... 3.2 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching frequency: 2,500 Hz
Connection: Connector, M12, 4 -pin
Design, housing: Cylindrical
Dimensions: 12 mm x 60 mm
Thread size: M12
Type of installation: Embedded/flush
Housing material: Metal
Certifications: c UL US
