Leuze

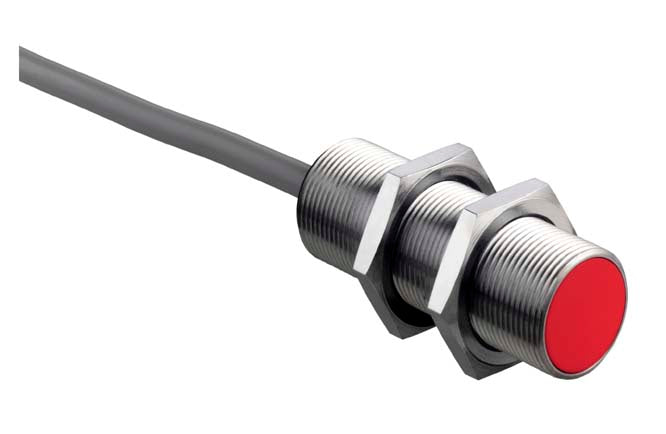

Leuze 50109692 IS 218MM/4NO-5E0 Inductive switch
Part number: 50109692
$86.25
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Typ. operating range limit Sn: 5 mm
Operating range Sa: 0 ... 4 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching frequency: 2,000 Hz
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 18 mm x 52 mm
Thread size: M18
Type of installation: Embedded/flush
Housing material: Metal
Certifications: c UL US
Operating range Sa: 0 ... 4 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching frequency: 2,000 Hz
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 18 mm x 52 mm
Thread size: M18
Type of installation: Embedded/flush
Housing material: Metal
Certifications: c UL US
