Leuze

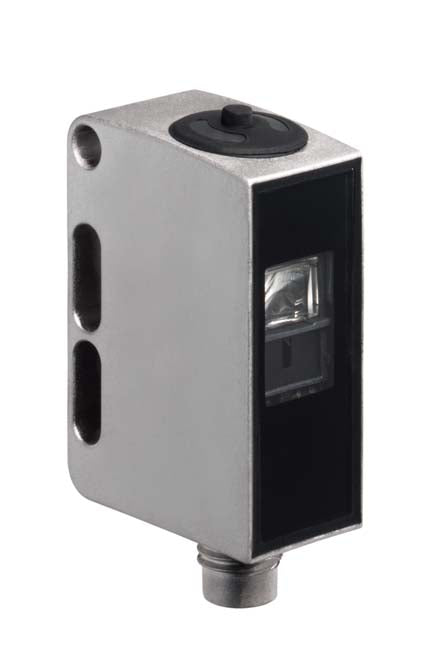

Leuze 50114075 KRTW 55/4.1121,5000 Contrast sensor
Part number: 50114075
$731.49
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Time function, Teach input
Operating range: 13 mm, ± 2 mm
Light source: LED, White
Light spot orientation: Vertical
Type of light spot geometry: Rectangular
Light beam exit: Front
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light/dark switchable
Switching frequency: 10,000 Hz
Connection: Cable, 5,000 mm, 4 -wire
Dimensions: 14 mm x 35.5 mm x 25 mm
Housing material: Stainless steel
Operational controls: Teach button
Operating range: 13 mm, ± 2 mm
Light source: LED, White
Light spot orientation: Vertical
Type of light spot geometry: Rectangular
Light beam exit: Front
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light/dark switchable
Switching frequency: 10,000 Hz
Connection: Cable, 5,000 mm, 4 -wire
Dimensions: 14 mm x 35.5 mm x 25 mm
Housing material: Stainless steel
Operational controls: Teach button
