Leuze

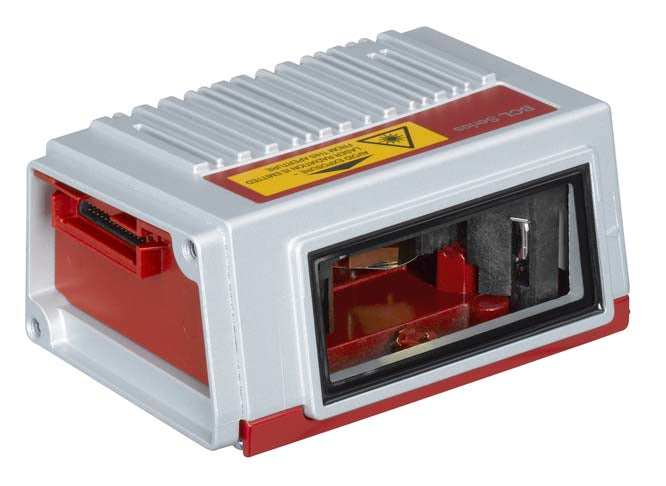

Leuze 50116305 BCL 301i SL 102 D H Stationary bar code reader
Part number: 50116305
$4,291.84
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Heating
Functions: AutoConfig, Alignment mode, AutoControl, AutoReflAct, Code fragment technology, Heating, LED indicator, Reference code comparison
Scanning rate, typical: 1,000 scans/s
Reading distance: 100 ... 700 mm
Modulus size: 0.35 ... 0.8 mm
Reading method: Line scanner
Light beam exit: Front
Supply voltage: 18 ... 30 V, DC
Selectable inputs/outputs: 2 Piece(s)
Interface: MultiNet Plus, RS 485, USB 2.0
Connection: Plug connector
Dimensions: 95 mm x 44 mm x 68 mm
Display: LED, Monochromatic graphic display, 128 x 32 pixels
Ambient temperature, operation: -35 ... 40 °C
Certifications: c UL US
Functions: AutoConfig, Alignment mode, AutoControl, AutoReflAct, Code fragment technology, Heating, LED indicator, Reference code comparison
Scanning rate, typical: 1,000 scans/s
Reading distance: 100 ... 700 mm
Modulus size: 0.35 ... 0.8 mm
Reading method: Line scanner
Light beam exit: Front
Supply voltage: 18 ... 30 V, DC
Selectable inputs/outputs: 2 Piece(s)
Interface: MultiNet Plus, RS 485, USB 2.0
Connection: Plug connector
Dimensions: 95 mm x 44 mm x 68 mm
Display: LED, Monochromatic graphic display, 128 x 32 pixels
Ambient temperature, operation: -35 ... 40 °C
Certifications: c UL US
