Leuze

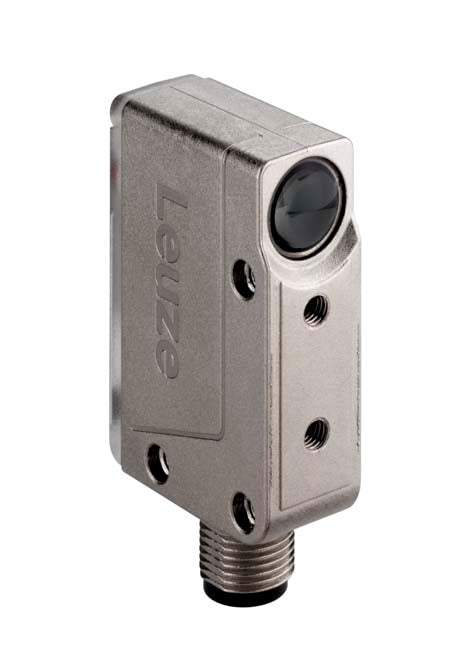

Leuze 50117375 RK18B.1/4P-M12 Unpolarized retro-reflective photoelectric sensor
Part number: 50117375
$273.06
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Application: Operation with glass triple reflectors and any reflective tapes
Special version: Autocollimation
Operating range limit: 0 ... 7.2 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, PNP, Dark switching
Switching frequency: 500 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 15 mm x 47 mm x 32.5 mm
Housing material: Metal
Operational controls: 270° potentiometer
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67, IP 69K
Special version: Autocollimation
Operating range limit: 0 ... 7.2 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, PNP, Dark switching
Switching frequency: 500 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 15 mm x 47 mm x 32.5 mm
Housing material: Metal
Operational controls: 270° potentiometer
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67, IP 69K
