Leuze

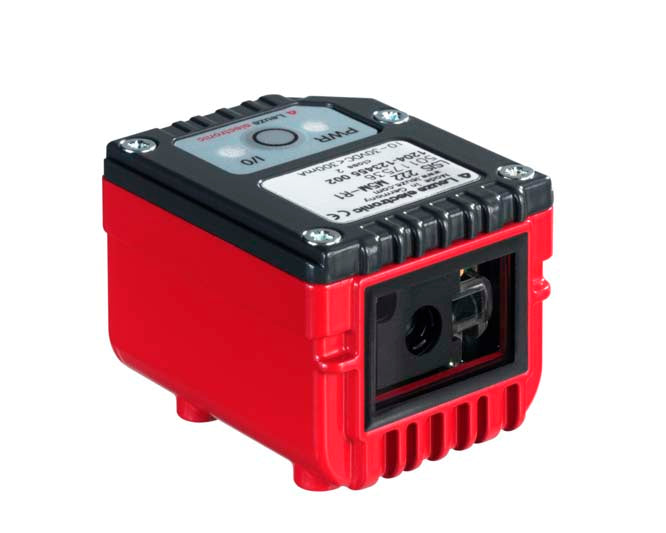

Leuze 50117536 LSIS 222 M5M-R1 Stationary 2D-code reader
Part number: 50117536
$2,922.08
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Software functions: Reading of 2D codes, Reading of 1D codes
Reading distance: 50 ... 330 mm
Camera resolution, horizontal: 844 px
Camera resolution, vertical: 640 px
Modulus size: 0.127 ... 1 mm
Supply voltage: 10 ... 30 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Interface: RS 232
Connection: Connector, M12
Dimensions: 40 mm x 32 mm x 47 mm
Optics cover: Glass
Ambient temperature, operation: 0 ... 40 °C
Degree of protection: IP 65
Reading distance: 50 ... 330 mm
Camera resolution, horizontal: 844 px
Camera resolution, vertical: 640 px
Modulus size: 0.127 ... 1 mm
Supply voltage: 10 ... 30 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Interface: RS 232
Connection: Connector, M12
Dimensions: 40 mm x 32 mm x 47 mm
Optics cover: Glass
Ambient temperature, operation: 0 ... 40 °C
Degree of protection: IP 65
