Leuze

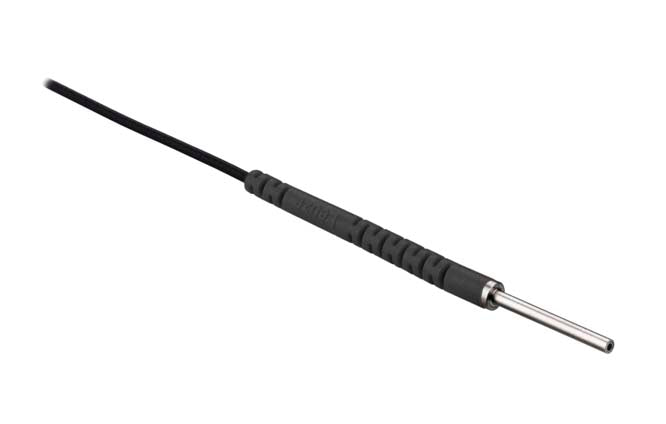

Leuze 50117763 KFX-ETC7-120 Plastic fiber optics type diffuse reflective
Part number: 50117763
$225.33
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Operating principle: Diffuse reflection principle
Area of application: General applications
Light beam exit: Front
Fiber core: Multiple fiber core, Coaxial fiber configuration
Minimum object diameter: 0.05 mm
Design: Cylindrical
Outer diameter: 1.25 mm
Fiber length: 2,000 mm
Fiber sheathing material: PE
Sleeve length at optical outlet: 15 mm
Metric thread on fiber optic sleeve: No
Laying: standard
Ambient temperature, operation: -55 ... 70 °C
Area of application: General applications
Light beam exit: Front
Fiber core: Multiple fiber core, Coaxial fiber configuration
Minimum object diameter: 0.05 mm
Design: Cylindrical
Outer diameter: 1.25 mm
Fiber length: 2,000 mm
Fiber sheathing material: PE
Sleeve length at optical outlet: 15 mm
Metric thread on fiber optic sleeve: No
Laying: standard
Ambient temperature, operation: -55 ... 70 °C
