Leuze

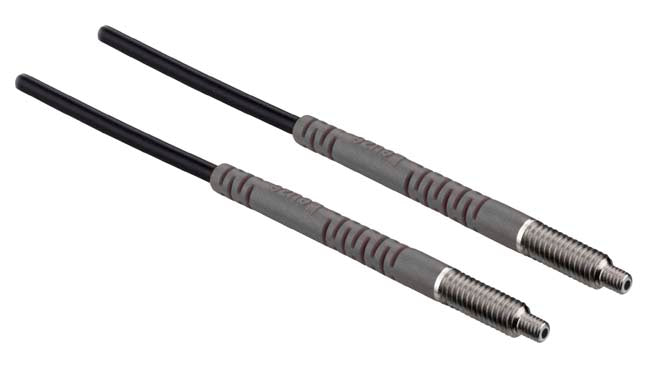

Leuze 50117768 KFX-LH-420 Plastic fiber optics for throughbeam operation
Part number: 50117768
$288.60
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Operating principle: Throughbeam principle
Device type: Transmit and receive fiber
Area of application: General applications
Special version: Heat resistant
Light beam exit: Front
Fiber core: Single fiber core
Minimum object diameter: 0.5 mm
Design: Cylindrical
Outer diameter: 2.2 mm
Fiber length: 2,000 mm
Fiber sheathing material: PE
Sleeve length at optical outlet: 13 mm
Metric thread on fiber optic sleeve: Yes
Laying: standard
Ambient temperature, operation: -55 ... 105 °C
Device type: Transmit and receive fiber
Area of application: General applications
Special version: Heat resistant
Light beam exit: Front
Fiber core: Single fiber core
Minimum object diameter: 0.5 mm
Design: Cylindrical
Outer diameter: 2.2 mm
Fiber length: 2,000 mm
Fiber sheathing material: PE
Sleeve length at optical outlet: 13 mm
Metric thread on fiber optic sleeve: Yes
Laying: standard
Ambient temperature, operation: -55 ... 105 °C
