Leuze

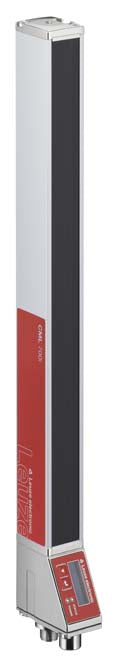

Leuze 50123067 CML730i-R05-1360.A/PB-M12 Light curtain receiver
Part number: 50123067
$6,316.80
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Diagonal-beam scanning, Crossed-beam scanning, Parallel-beam scanning
Measurement field length: 1,360 mm
Beam spacing: 5 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 2.87 ms
Response time per beam: 10 µs
Interface: PROFIBUS DP
Connection: Connector, M12, Axial, 8 -pin
Dimensions: 29 mm x 35.4 mm x 1,435 mm
Measurement field length: 1,360 mm
Beam spacing: 5 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 2.87 ms
Response time per beam: 10 µs
Interface: PROFIBUS DP
Connection: Connector, M12, Axial, 8 -pin
Dimensions: 29 mm x 35.4 mm x 1,435 mm
