Leuze

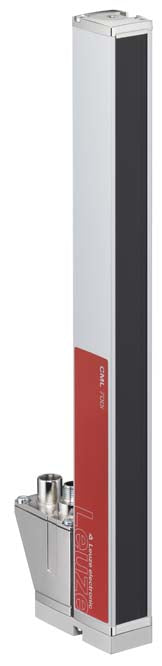

Leuze 50123655 CML720i-R40-1890.R/D3-M12 Light curtain receiver
Part number: 50123655
$2,577.12
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Diagonal-beam scanning, Crossed-beam scanning, Parallel-beam scanning
Measurement field length: 1,890 mm
Beam spacing: 40 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 1.81 ms
Response time per beam: 30 µs
Interface: RS 485 Modbus
Connection: Connector, M12, Rear side, 8 -pin
Dimensions: 29 mm x 35.4 mm x 1,943 mm
Measurement field length: 1,890 mm
Beam spacing: 40 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 1.81 ms
Response time per beam: 30 µs
Interface: RS 485 Modbus
Connection: Connector, M12, Rear side, 8 -pin
Dimensions: 29 mm x 35.4 mm x 1,943 mm
