Leuze

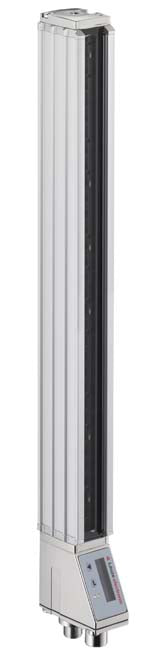

Leuze 50126381 CML720i-R20-1730.A/CN-M12-EX Light curtain receiver
Part number: 50126381
$3,162.88
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Crossed-beam scanning, Diagonal-beam scanning, Ex-protected, Parallel-beam scanning
Measurement field length: 1,730 mm
Beam spacing: 20 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 3.04 ms
Response time per beam: 30 µs
Interface: IO-Link, CANopen
Connection: Connector, M12, Axial, 8 -pin
Dimensions: 30.7 mm x 54.8 mm x 1,783 mm
Ex device group: II
Measurement field length: 1,730 mm
Beam spacing: 20 mm
Supply voltage: 18 ... 30 V, DC
Cycle time: 3.04 ms
Response time per beam: 30 µs
Interface: IO-Link, CANopen
Connection: Connector, M12, Axial, 8 -pin
Dimensions: 30.7 mm x 54.8 mm x 1,783 mm
Ex device group: II
