Leuze

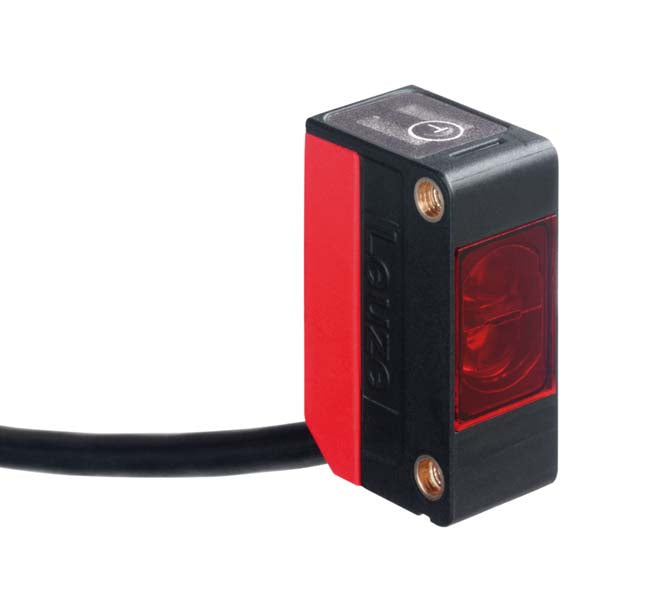

Leuze 50127903 FT5I.3/2N Energetic diffuse sensor
Part number: 50127903
$243.10
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Operating range limit, white 90%: 0.001 ... 0.28 m
Light source: LED, Infrared
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, NPN, Light switching
Switching output 2: Transistor, NPN, Dark switching
Switching frequency: 500 Hz
Connection: Cable, 2,000 mm, 4 -wire
Design, housing: Cubic
Dimensions: 14 mm x 32.5 mm x 20.2 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67
Light source: LED, Infrared
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, NPN, Light switching
Switching output 2: Transistor, NPN, Dark switching
Switching frequency: 500 Hz
Connection: Cable, 2,000 mm, 4 -wire
Design, housing: Cubic
Dimensions: 14 mm x 32.5 mm x 20.2 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67
