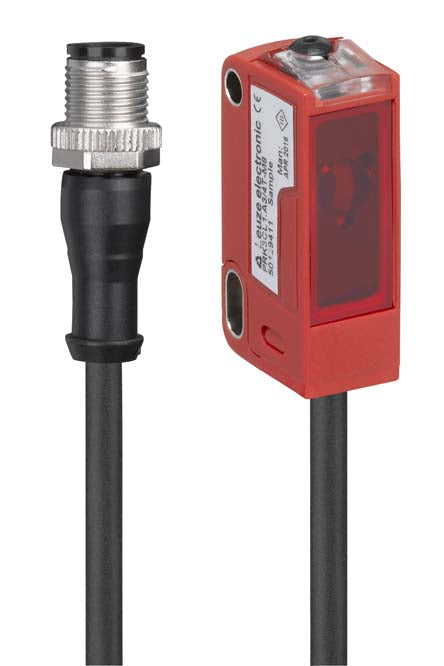

Leuze 50129409 PRK3C.TT3/4T-200-M12 Polarized retro-reflective photoelectric sensor
Part number: 50129409
$289.71
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Application: Detection of highly transparent bottles, Detection of transparent films
Special version: Autocollimation, Tracking function
Operating range limit: 0 ... 3.6 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 1,500 Hz
Connection: Cable with connector, 200 mm, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 11.4 mm x 34.2 mm x 18.3 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67, IP 69K
Special version: Autocollimation, Tracking function
Operating range limit: 0 ... 3.6 m
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 1,500 Hz
Connection: Cable with connector, 200 mm, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 11.4 mm x 34.2 mm x 18.3 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 67, IP 69K
