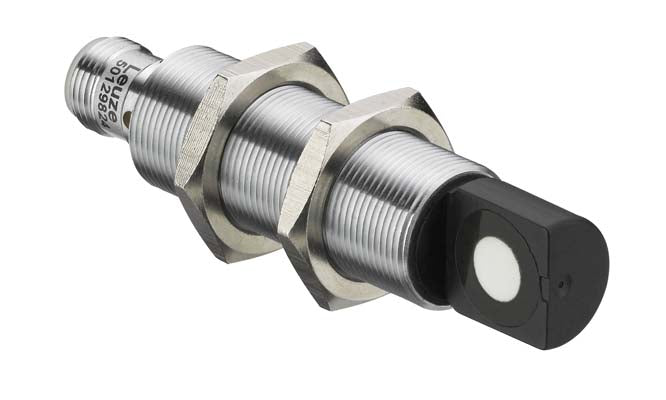

Leuze 50129826 HTU418B-400.W/4T4-M12 Ultrasonic sensor
Part number: 50129826
$496.17
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Teach input, 2 independent switching outputs
Operating range: 0.025 ... 0.4 m
Direction of beam: 90° - deflection
Opening angle: 9 °
Supply voltage: 15 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching output 2: Transistor, PNP, NC contact/NO contact
Switching frequency: 7 Hz
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M18
Dimensions: 18 mm x 97.8 mm
Housing material: Metal
Operating range: 0.025 ... 0.4 m
Direction of beam: 90° - deflection
Opening angle: 9 °
Supply voltage: 15 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, NO (normally open)
Switching output 2: Transistor, PNP, NC contact/NO contact
Switching frequency: 7 Hz
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M18
Dimensions: 18 mm x 97.8 mm
Housing material: Metal
