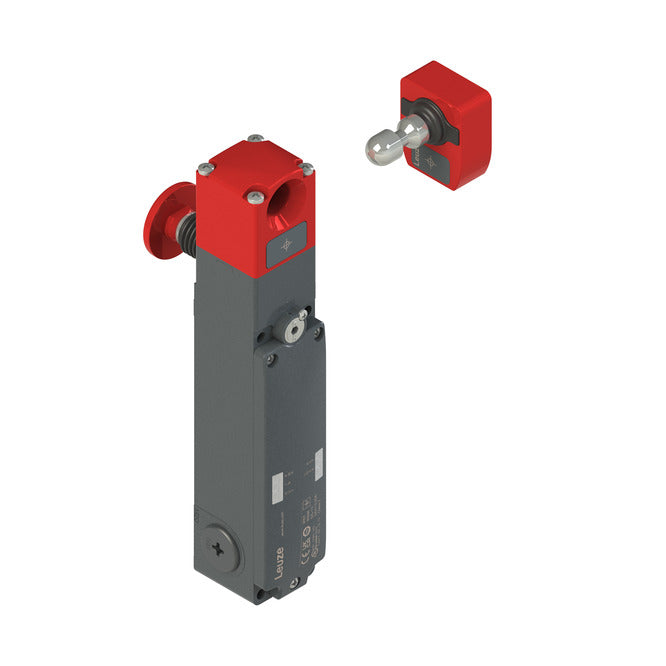

Leuze 50132052 L300-M31C3-SLM24-PB-SCA Safety locking device

Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4)
Activation mode of safety outputs: Safety outputs active if safety door is closed and locked
Operating principle: Power to release – Actuator locked if electromagnet is deactivated
Performance Level (PL): Up to and including e, EN ISO 13849-1
Encoding level: Low, EN ISO 14119
Type of wiring: Single connection, Series connection
Safety-related switching outputs, type: Safety-related switching output OSSD
Connection: Terminal, 18 -pin
Housing material: Metal
Release device: Auxiliary release, Escape release button
Locking force, max.: 9,750 N
Operational controls: Standard
Degree of protection: IP 67, IP 69K
Certifications: c UL US, ECOLAB, TÜV Süd
