Leuze

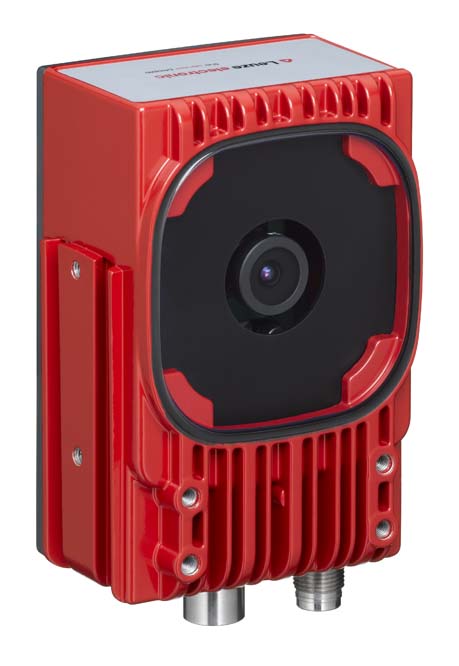

Leuze 50132136 LCAM 408i C7F-XX Camera
Part number: 50132136
$3,650.10
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Suitable for: Use of cleaning agents
Software functions: Image transfer
Camera resolution, horizontal: 2,592 px
Camera resolution, vertical: 1,944 px
Focal length: 4 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet
Connection: Connector, M12
Dimensions: 75 mm x 55 mm x 113 mm
Ambient temperature, operation: -30 ... 70 °C
Degree of protection: IP 67, IP 65
Software functions: Image transfer
Camera resolution, horizontal: 2,592 px
Camera resolution, vertical: 1,944 px
Focal length: 4 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet
Connection: Connector, M12
Dimensions: 75 mm x 55 mm x 113 mm
Ambient temperature, operation: -30 ... 70 °C
Degree of protection: IP 67, IP 65
