Leuze

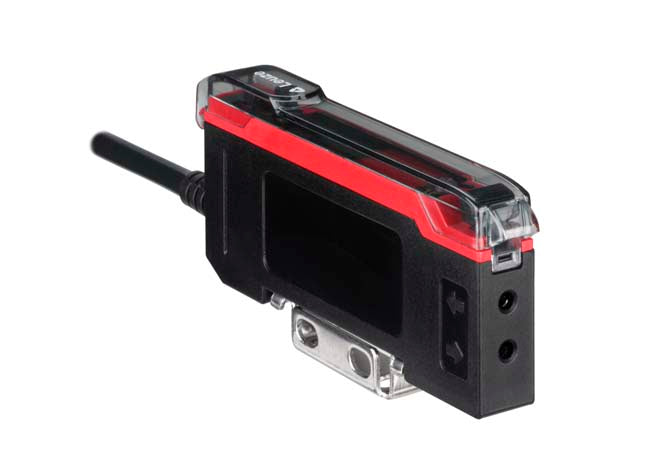

Leuze 50133969 LV463.XV7/L4-M8 Fiber optic amplifier
Part number: 50133969
$432.90
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Time function, Short response time
Light source: LED, Red
Supply voltage: 10 ... 24 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull
Switching output 2: Transistor, PNP
Switching frequency: 50,000 Hz
Interface: IO-Link
Connection: Connector, M8, 4 -pin
Dimensions: 10 mm x 31.5 mm x 72 mm
Housing material: Plastic
Display: LED
Operational controls: Rocker pressure switch, Slide switch
Light source: LED, Red
Supply voltage: 10 ... 24 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull
Switching output 2: Transistor, PNP
Switching frequency: 50,000 Hz
Interface: IO-Link
Connection: Connector, M8, 4 -pin
Dimensions: 10 mm x 31.5 mm x 72 mm
Housing material: Plastic
Display: LED
Operational controls: Rocker pressure switch, Slide switch
