Leuze

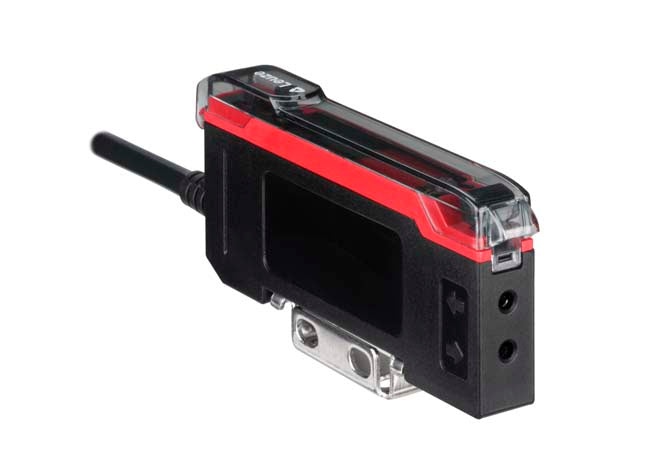

Leuze 50133973 LV463.XR7/4T Fiber optic amplifier
Part number: 50133973
$379.62
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Time function, Large operating range
Light source: LED, Red
Supply voltage: 10 ... 24 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP
Inputs/outputs selectable: 1 Piece(s)
Switching frequency: 1,000 Hz
Connection: Cable, 2,000 mm, 4 -wire
Dimensions: 10 mm x 31.5 mm x 72 mm
Housing material: Plastic
Display: LED
Operational controls: Slide switch, Rocker pressure switch
Light source: LED, Red
Supply voltage: 10 ... 24 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP
Inputs/outputs selectable: 1 Piece(s)
Switching frequency: 1,000 Hz
Connection: Cable, 2,000 mm, 4 -wire
Dimensions: 10 mm x 31.5 mm x 72 mm
Housing material: Plastic
Display: LED
Operational controls: Slide switch, Rocker pressure switch
