Leuze

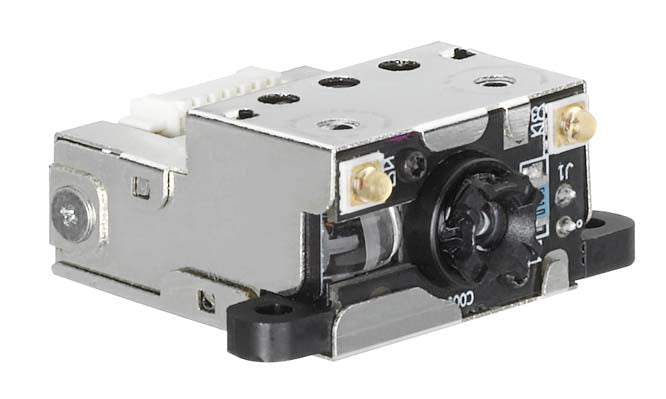

Leuze 50135000 DCR50M2/R2 Stationary 2D-code reader
Part number: 50135000
$940.80
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Scan Engine Module
Software functions: Reading of 2D codes, Reading of 1D codes
Reading distance: 30 ... 425 mm
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Modulus size: 0.127 ... 0.528 mm
Supply voltage: 4.75 ... 5.25 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Digital switching output: NPN
Interface: RS 232
Connection: Molex connector 53261-0671
Dimensions: 31.6 mm x 12.7 mm x 27.5 mm
Ambient temperature, operation: 0 ... 50 °C
Software functions: Reading of 2D codes, Reading of 1D codes
Reading distance: 30 ... 425 mm
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Modulus size: 0.127 ... 0.528 mm
Supply voltage: 4.75 ... 5.25 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Digital switching output: NPN
Interface: RS 232
Connection: Molex connector 53261-0671
Dimensions: 31.6 mm x 12.7 mm x 27.5 mm
Ambient temperature, operation: 0 ... 50 °C
