Leuze

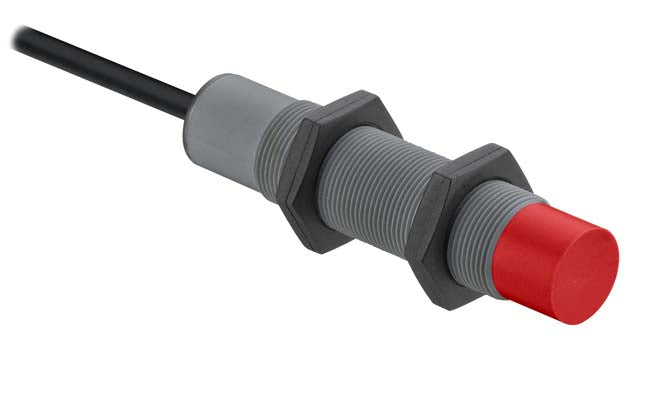

Leuze 50136608 LCS-2M18P-N15NNC-K020V Capacitive sensor
Part number: 50136608
$87.40
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Switching distance Sn: 2 ... 15 mm
Assured switching distance: 12.1 mm
Output function: NPN, NC (normally closed)
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 18 mm x 70 mm
Thread size: M18 x 1 mm
Assured switching distance: 12.1 mm
Output function: NPN, NC (normally closed)
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 18 mm x 70 mm
Thread size: M18 x 1 mm
