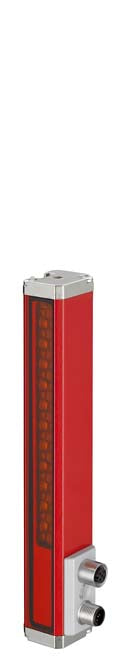

Leuze 50137473 OGS 600-140/CN-M12 Optical guidance sensor
Part number: 50137473
$2,212.23
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Application: Optical guidance
Trace types: Light trace on dark background, Dark trace on light background, Retro-reflective trace
Working range: 10 ... 70 mm
Light source: LED, Red
Detection width for complete trace: 115 mm
Supply voltage: 18 ... 30 V, DC
Interface: CANopen
Connection: Connector, M12
Dimensions: 34.5 mm x 47.5 mm x 216 mm
Degree of protection: IP 65
Trace types: Light trace on dark background, Dark trace on light background, Retro-reflective trace
Working range: 10 ... 70 mm
Light source: LED, Red
Detection width for complete trace: 115 mm
Supply voltage: 18 ... 30 V, DC
Interface: CANopen
Connection: Connector, M12
Dimensions: 34.5 mm x 47.5 mm x 216 mm
Degree of protection: IP 65
