Leuze

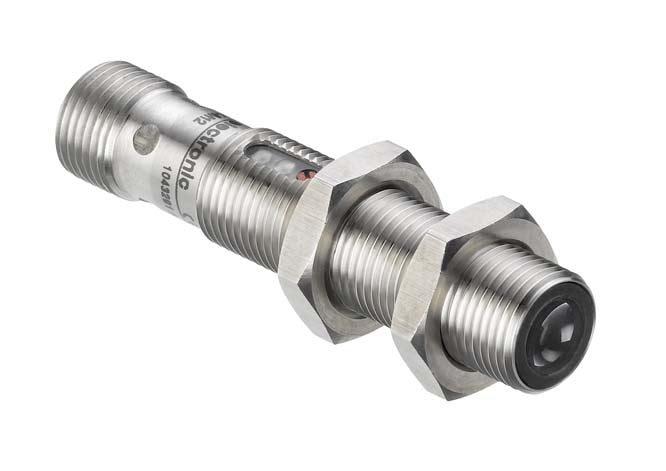

Leuze 50140163 LE412BL2.1/4X-M12 Throughbeam photoelectric sensor receiver
Part number: 50140163
$208.68
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Supply voltage: 10 ... 36 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 5,000 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cylindrical
Dimensions: 12 mm x 60 mm
Thread size: M12
Housing material: Stainless steel
Operational controls: 270° potentiometer
Ambient temperature, operation: -10 ... 50 °C
Degree of protection: IP 67
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 5,000 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cylindrical
Dimensions: 12 mm x 60 mm
Thread size: M12
Housing material: Stainless steel
Operational controls: 270° potentiometer
Ambient temperature, operation: -10 ... 50 °C
Degree of protection: IP 67
