Leuze

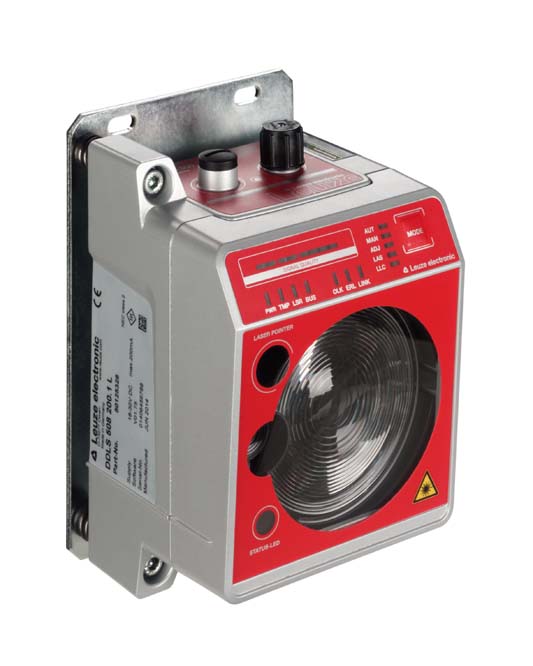

Leuze 50141106 DDLS 538 40.3 L H S2 Optical data transmission
Part number: 50141106
$4,317.60
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Pre-mounted on: Mounting plate
Special version: Heating, Integrated laser alignment aid, Not influenced by reflective surfaces, Operation of parallel light axes
Working range: 100 ... 40,000 mm
Transmission frequency: F3
Supply voltage: 18 ... 30 V, DC
Interface: EtherCAT link down 5 ms
Transmission protocol: EtherCAT FSoE, CIPsafety, EtherCAT link down 5 ms
Connection: Connector, M12
Dimensions: 100 mm x 156 mm x 99.5 mm
Ambient temperature, operation: -35 ... 50 °C
Degree of protection: IP 65
Special version: Heating, Integrated laser alignment aid, Not influenced by reflective surfaces, Operation of parallel light axes
Working range: 100 ... 40,000 mm
Transmission frequency: F3
Supply voltage: 18 ... 30 V, DC
Interface: EtherCAT link down 5 ms
Transmission protocol: EtherCAT FSoE, CIPsafety, EtherCAT link down 5 ms
Connection: Connector, M12
Dimensions: 100 mm x 156 mm x 99.5 mm
Ambient temperature, operation: -35 ... 50 °C
Degree of protection: IP 65
