Leuze

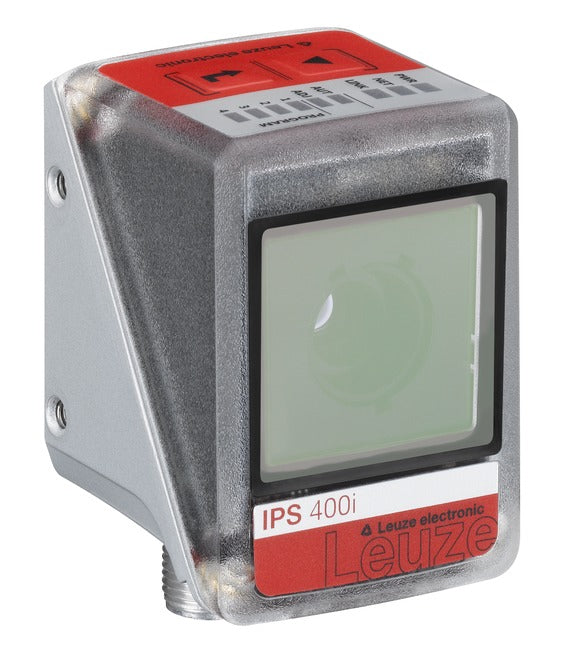

Leuze 50142217 IPS 408i FIX-F4-102-I3-G-H Smart camera
Part number: 50142217
$5,202.40
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Application: Double compartment depth
Special version: Heating
Software functions: Compartment fine positioning
Working range: 350 ... 1,900 mm, up to 2,400 mm with reflector
Light source: LED, Infrared
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Marker size: 13 ... 15 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Configuration/parametization: Configuration codes, Teach-in, Via web browser
Ambient temperature, operation: -30 ... 50 °C
Degree of protection: IP 65
Special version: Heating
Software functions: Compartment fine positioning
Working range: 350 ... 1,900 mm, up to 2,400 mm with reflector
Light source: LED, Infrared
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Marker size: 13 ... 15 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Configuration/parametization: Configuration codes, Teach-in, Via web browser
Ambient temperature, operation: -30 ... 50 °C
Degree of protection: IP 65
