Leuze

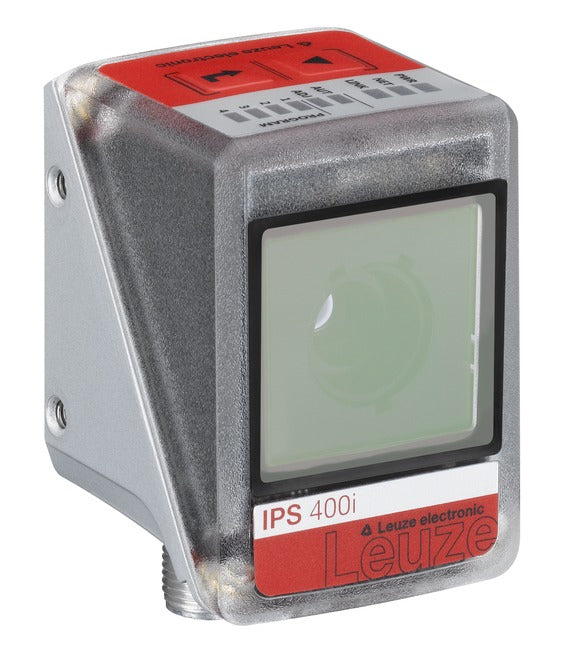

Leuze 50142218 IPS 448i FIX-F2-102-I3-G Smart camera
Part number: 50142218
$4,876.48
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Application: Double compartment depth
Software functions: Compartment fine positioning
Working range: 250 ... 1,900 mm
Light source: LED, Infrared
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Marker size: 13 ... 15 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet, PROFINET
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Configuration/parametization: Via web browser, Configuration codes, Teach-in
Ambient temperature, operation: 0 ... 45 °C
Degree of protection: IP 65
Software functions: Compartment fine positioning
Working range: 250 ... 1,900 mm
Light source: LED, Infrared
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Marker size: 13 ... 15 mm
Supply voltage: 18 ... 30 V, DC
Interface: Ethernet, PROFINET
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Configuration/parametization: Via web browser, Configuration codes, Teach-in
Ambient temperature, operation: 0 ... 45 °C
Degree of protection: IP 65
