Leuze

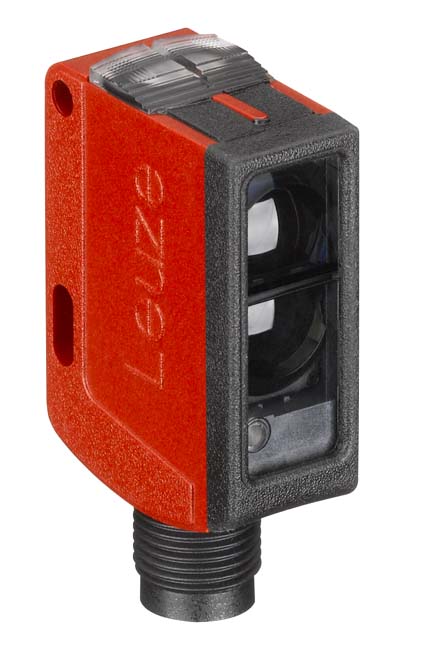

Leuze 50142302 HRT 25B/L6T.32-2500-S12 Diffuse sensor with background suppression
Part number: 50142302
$398.49
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Teach via IO-Link, 2 independent switching outputs, Teach input
Operating range limit: 0.05 ... 3 m
Light source: LED, Infrared
Supply voltage: 18 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
Interface: IO-Link
Connection: Connector, M12, Plastic, 5 -pin
Design, housing: Cubic
Dimensions: 15 mm x 38.9 mm x 28.7 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -30 ... 50 °C
Degree of protection: IP 66, IP 67
Operating range limit: 0.05 ... 3 m
Light source: LED, Infrared
Supply voltage: 18 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
Interface: IO-Link
Connection: Connector, M12, Plastic, 5 -pin
Design, housing: Cubic
Dimensions: 15 mm x 38.9 mm x 28.7 mm
Housing material: Plastic
Operational controls: Teach button
Ambient temperature, operation: -30 ... 50 °C
Degree of protection: IP 66, IP 67
