Leuze

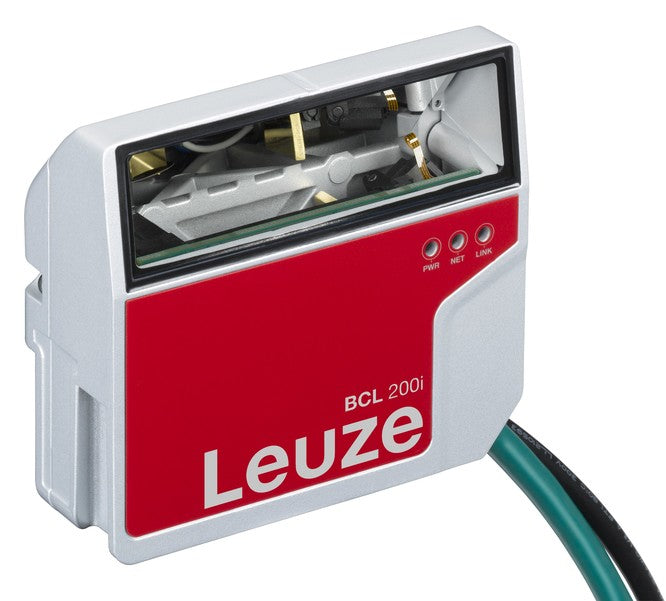

Leuze 50143209 BCL 208i SM 110 Stationary bar code reader
Part number: 50143209
$2,526.72
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Functions: AutoReflAct, Alignment mode, AutoConfig, AutoControl, Code fragment technology, LED indicator, Reference code comparison
Scanning rate, typical: 1,000 scans/s
Reading distance: 40 ... 255 mm
Modulus size: 0.2 ... 0.5 mm
Reading method: Line scanner with deflecting mirror
Light beam exit: Lateral with deflecting mirror
Supply voltage: 18 ... 30 V, DC
Digital switching inputs: 1 Piece(s)
Digital switching outputs: 1 Piece(s)
Interface: Ethernet
Connection: Cable with connector M12
Dimensions: 93 mm x 38 mm x 83 mm
Display: LED
Ambient temperature, operation: 0 ... 40 °C
Certifications: c UL US
Scanning rate, typical: 1,000 scans/s
Reading distance: 40 ... 255 mm
Modulus size: 0.2 ... 0.5 mm
Reading method: Line scanner with deflecting mirror
Light beam exit: Lateral with deflecting mirror
Supply voltage: 18 ... 30 V, DC
Digital switching inputs: 1 Piece(s)
Digital switching outputs: 1 Piece(s)
Interface: Ethernet
Connection: Cable with connector M12
Dimensions: 93 mm x 38 mm x 83 mm
Display: LED
Ambient temperature, operation: 0 ... 40 °C
Certifications: c UL US
