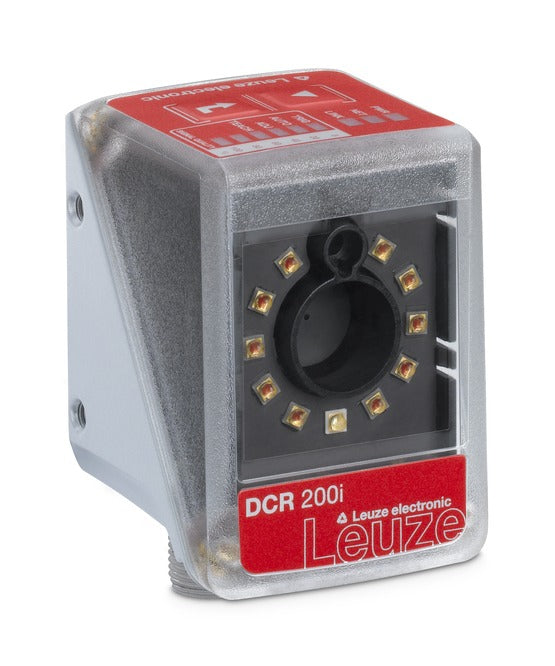

Leuze 50146004 DCR 258i FIX-F2-102-R3 Stationary 2D-code reader
Part number: 50146004
$2,897.44
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Software functions: Reading of 2D codes, Reading of 1D codes
Reading distance: 70 ... 360 mm
Light source: LED, Red
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Modulus size: 0.19 ... 0.5 mm
Supply voltage: 18 ... 30 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Selectable inputs/outputs: 2 Piece(s)
Interface: RS 232, RS 422, EtherNet IP, Ethernet
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Optics cover: Plastic
Ambient temperature, operation: 0 ... 45 °C
Degree of protection: IP 65
Reading distance: 70 ... 360 mm
Light source: LED, Red
Camera resolution, horizontal: 1,280 px
Camera resolution, vertical: 960 px
Modulus size: 0.19 ... 0.5 mm
Supply voltage: 18 ... 30 V, DC
Switching inputs: 1 Piece(s)
Switching outputs: 1 Piece(s)
Selectable inputs/outputs: 2 Piece(s)
Interface: RS 232, RS 422, EtherNet IP, Ethernet
Connection: Connector, M12
Dimensions: 43 mm x 61 mm x 44 mm
Optics cover: Plastic
Ambient temperature, operation: 0 ... 45 °C
Degree of protection: IP 65
