Leuze

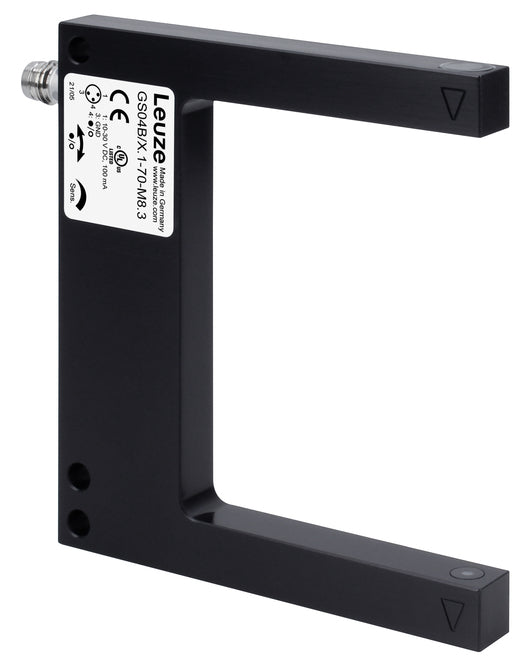

Leuze 50146180 GS04B/N.1-70-M8.3 Fork photoelectric sensor
Part number: 50146180
$316.35
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Principle of physics: Optical
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output: Transistor, NPN, Light/dark switchable
Switching frequency: 5,000 Hz
Connection: Connector, M8, 3 -pin
Mouth width: 70 mm
Mouth depth: 55 mm
Dimensions: 10 mm x 90 mm x 80 mm
Housing material: Metal, Aluminum
Light source: LED, Red
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output: Transistor, NPN, Light/dark switchable
Switching frequency: 5,000 Hz
Connection: Connector, M8, 3 -pin
Mouth width: 70 mm
Mouth depth: 55 mm
Dimensions: 10 mm x 90 mm x 80 mm
Housing material: Metal, Aluminum
