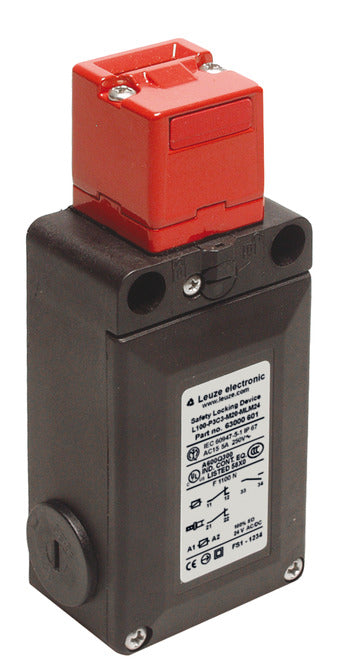

Leuze 50149762 L100-P5C3-SLM24 Safety locking device
Part number: 50149762
$301.92
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Functions: Mechanical guard interlocking (spring-force), Auxiliary release, Integration in control circuits up to category 4 in accordance with EN ISO 13849-1, Locking device with guard interlocking according to ISO 14119, Switch-on current reduction, adjustable
Operating principle: Power to release – Actuator locked if electromagnet is deactivated
Connection: Terminal, 8 -pin
Dimensions: 62.8 mm x 38.2 mm x 135 mm
Housing material: Plastic
Locking force, max.: 1,100 N
Degree of protection: IP 67
Certifications: IMQ, c UL US
Operating principle: Power to release – Actuator locked if electromagnet is deactivated
Connection: Terminal, 8 -pin
Dimensions: 62.8 mm x 38.2 mm x 135 mm
Housing material: Plastic
Locking force, max.: 1,100 N
Degree of protection: IP 67
Certifications: IMQ, c UL US
