Leuze

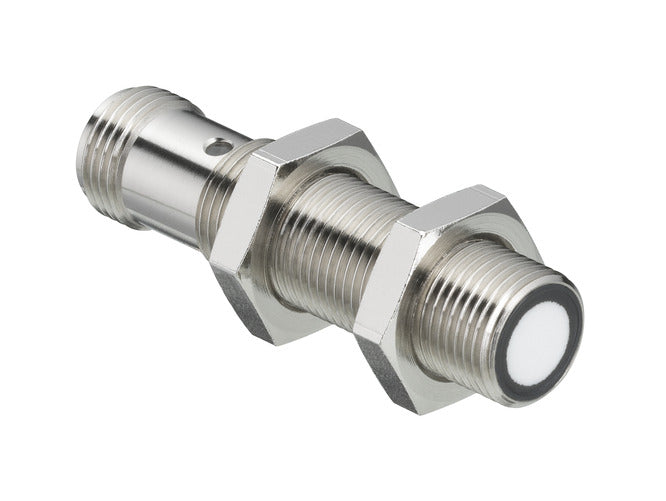

Leuze 50150584 HTU412B-500/L6T-M12 Ultrasonic sensor
Part number: 50150584
$448.44
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Multiplex operation, Synchronous operation, Teach input
Operating range: 0.015 ... 0.5 m
Direction of beam: Front
Opening angle: 3 ... 11 °
Supply voltage: 12 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
Switching frequency: 12 Hz
Interface: IO-Link
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M12
Dimensions: 12 mm x 50 mm
Housing material: Metal
Operating range: 0.015 ... 0.5 m
Direction of beam: Front
Opening angle: 3 ... 11 °
Supply voltage: 12 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
Switching frequency: 12 Hz
Interface: IO-Link
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M12
Dimensions: 12 mm x 50 mm
Housing material: Metal
