Leuze

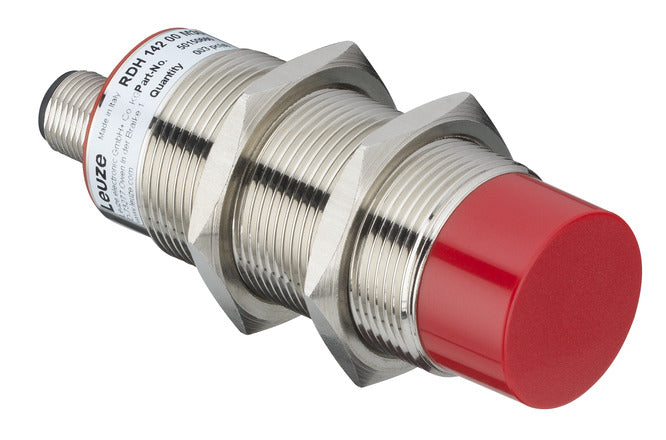

Leuze 50150660 RDH 142 00 M30 RFID read/write device
Part number: 50150660
$567.00
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Working frequency: 13.56 MHz
Functions: Configurable operating modes, I/O, Reading gate control
Reading/writing range, max.: 60 mm
Supply voltage: 18 ... 36 V, DC
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M30
Dimensions: 75 mm
Ambient temperature, operation: -32 ... 60 °C
Degree of protection: IP 67
Functions: Configurable operating modes, I/O, Reading gate control
Reading/writing range, max.: 60 mm
Supply voltage: 18 ... 36 V, DC
Connection: Connector, M12, 5 -pin
Design: Cylindrical, M30
Dimensions: 75 mm
Ambient temperature, operation: -32 ... 60 °C
Degree of protection: IP 67
