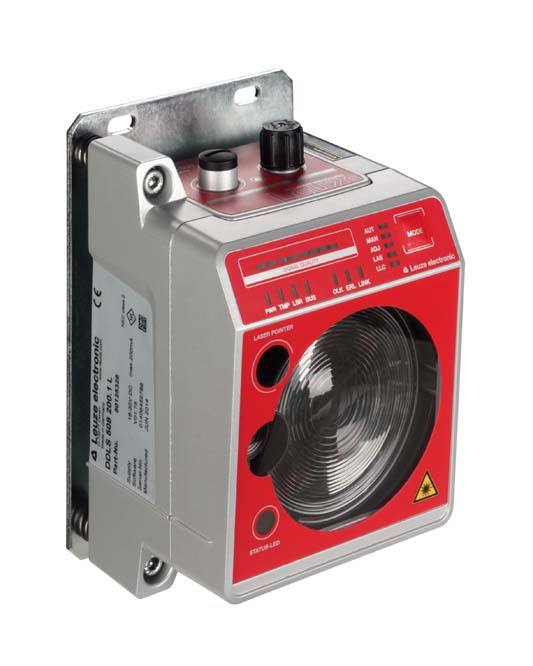

Leuze 50150856 DDLS 508 120.3 L W Optical data transmission
Part number: 50150856
$4,332.16
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Pre-mounted on: Mounting plate
Special version: Operation of parallel light axes, Integrated laser alignment aid, Not influenced by reflective surfaces, Wide angle version
Working range: 100 ... 120,000 mm
Transmission frequency: F3
Supply voltage: 18 ... 30 V, DC
Transmission protocol: CIPsafety
Interface: EtherNet IP, EtherNet TCP/IP, PROFINET
Ethernet, transmission speed: 100 Mbit/s
PROFINET, transmission speed: 100 Mbit/s
Connection: Connector, M12
Dimensions: 100 mm x 156 mm x 99.5 mm
Ambient temperature, operation: -5 ... 50 °C
Degree of protection: IP 65
Special version: Operation of parallel light axes, Integrated laser alignment aid, Not influenced by reflective surfaces, Wide angle version
Working range: 100 ... 120,000 mm
Transmission frequency: F3
Supply voltage: 18 ... 30 V, DC
Transmission protocol: CIPsafety
Interface: EtherNet IP, EtherNet TCP/IP, PROFINET
Ethernet, transmission speed: 100 Mbit/s
PROFINET, transmission speed: 100 Mbit/s
Connection: Connector, M12
Dimensions: 100 mm x 156 mm x 99.5 mm
Ambient temperature, operation: -5 ... 50 °C
Degree of protection: IP 65
