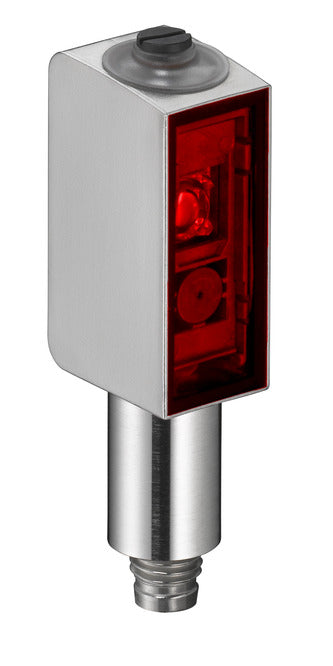

Leuze 50151372 HT53CL1/LG-M8.P1 Diffuse sensor with background suppression
Part number: 50151372
$439.56
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: HYGIENE design
Operating range limit: 0.015 ... 0.55 m
Light source: Laser, Red
Protection class: 1
Shift angle: Typ. ± 2°
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Dark switching (PNP)/light switching (NPN)
Switching frequency: 500 Hz
Interface: IO-Link
Connection: Connector, M8, Stainless steel, 4 -pin
Design, housing: Cubic
Dimensions: 14 mm x 35.4 mm x 20.4 mm
Housing material: Stainless steel
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 68, IP 67, IP 69K
Operating range limit: 0.015 ... 0.55 m
Light source: Laser, Red
Protection class: 1
Shift angle: Typ. ± 2°
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)
Switching output 2: Transistor, Push-pull, Dark switching (PNP)/light switching (NPN)
Switching frequency: 500 Hz
Interface: IO-Link
Connection: Connector, M8, Stainless steel, 4 -pin
Design, housing: Cubic
Dimensions: 14 mm x 35.4 mm x 20.4 mm
Housing material: Stainless steel
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 68, IP 67, IP 69K
