Leuze

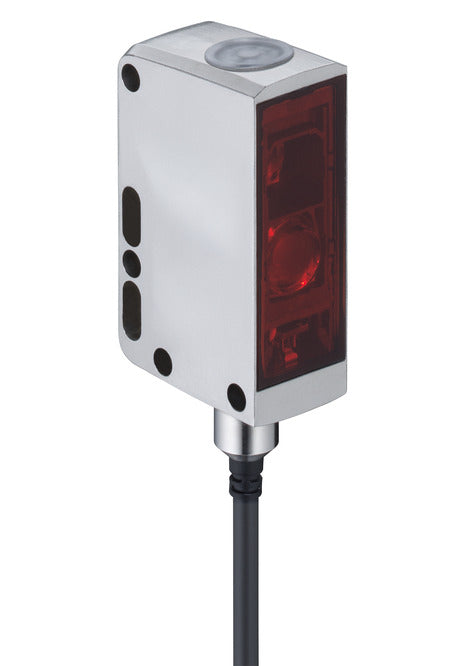

Leuze 50153570 DRT35C.3/4T Dynamic reference diffuse sensor
Part number: 50153570
$408.91
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Special version: Teach input
Light source: LED, Red
Supply voltage: 12 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 750 Hz
Connection: Cable, 2,000 mm, 4 -wire
Design, housing: Cubic
Dimensions: 18.8 mm x 55.3 mm x 32.4 mm
Housing material: Stainless steel
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 68, IP 67, IP 69K
Light source: LED, Red
Supply voltage: 12 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching frequency: 750 Hz
Connection: Cable, 2,000 mm, 4 -wire
Design, housing: Cubic
Dimensions: 18.8 mm x 55.3 mm x 32.4 mm
Housing material: Stainless steel
Operational controls: Teach button
Ambient temperature, operation: -40 ... 60 °C
Degree of protection: IP 68, IP 67, IP 69K
