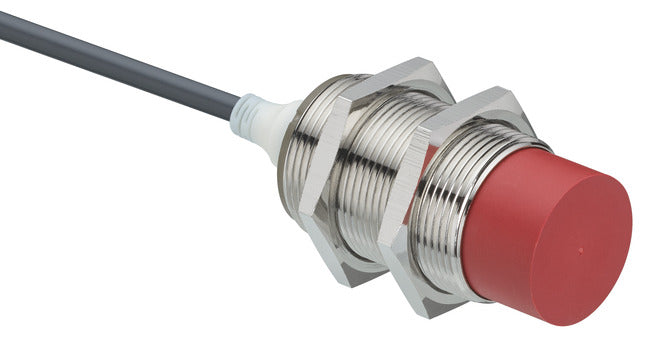

Leuze 50154013 IS D30MM/4NC-30N Inductive switch
Part number: 50154013
$82.00
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Typ. operating range limit Sn: 30 mm
Operating range Sa: 0 ... 24.3 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NC (normally closed)
Switching frequency: 100 Hz
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 30 mm x 76 mm
Thread size: M30
Type of installation: Non-embedded/non-flush
Housing material: Metal
Operating range Sa: 0 ... 24.3 mm
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 1 Piece(s)
Switching output 1: Transistor, PNP, NC (normally closed)
Switching frequency: 100 Hz
Connection: Cable, 2,000 mm, 3 -wire
Design, housing: Cylindrical
Dimensions: 30 mm x 76 mm
Thread size: M30
Type of installation: Non-embedded/non-flush
Housing material: Metal
