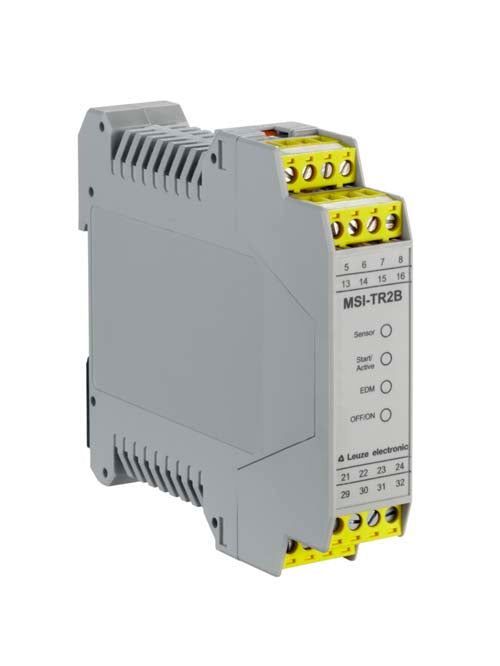

Leuze 547960 MSI-TR2B-01 Safety relay

Application: Evaluation unit for type 2 single beam safety devices in accordance with IEC/EN 61496
Functions: Periodic function test, "Error" signal output, "Safety ON" signal output, Contactor monitoring (EDM), Increased availability through additional filter time, Start/restart interlock (RES)
Restart: Automatic, Manual
Type: 2, IEC/EN 61496
SIL: 1, IEC 61508
Performance Level (PL): c, EN ISO 13849-1
Category: 2, EN ISO 13849-1
Contacts (NO contact/NC contact): 2 NO contacts / -
Number of switching inputs: 4 Piece(s)
Number of safety-related switching outputs (OSSDs): 2 Piece(s)
Number of switching outputs: 3 Piece(s)
Safety-related switching output 1: Relay, NO
Safety-related switching output 2: Relay, NO
Switching output 1: Transistor, PNP
Response time: 20 ms
Sensor response time on test request: 0.5 ... 60 ms
Connection: Screw terminal
Dimensions: 22.5 mm x 99 mm x 114.1 mm
Ambient temperature, operation: -30 ... 60 °C
Certifications: TÜV Süd
