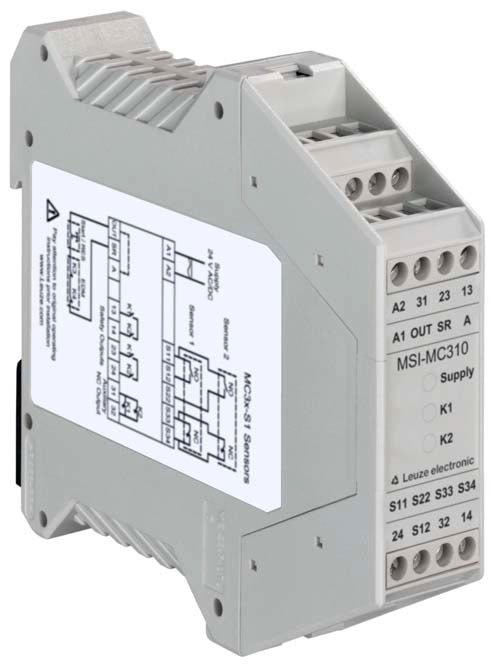

Leuze 549941 MSI-MC310 Safety relay

Application: Evaluation unit for magnetically coded sensors with antivalent reed contacts
Functions: Start/restart interlock (RES), For stop category 0, Static contactor monitoring (EDM)
Restart: Automatic, Manual
SIL: 3, IEC 61508
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849-1
STOP category: 0, IEC/EN 60204-1
Contacts (NO contact/NC contact): 1 NO contact / 1 NC contact
Number of safety-related switching outputs (OSSDs): 2 Piece(s)
Number of switching outputs: 1 Piece(s)
Safety-related switching output 1: Relay, NO
Safety-related switching output 2: Relay, NO
Switching output 1: Relay, NC
Response time: 20 ms
Connection: Screw terminal
Dimensions: 22.5 mm x 99 mm x 113.6 mm
Connectable sensors: Magnetically coded sensors MC3xS1x
Ambient temperature, operation: 0 ... 55 °C
Certifications: TÜV Süd, c UL US
