Leuze

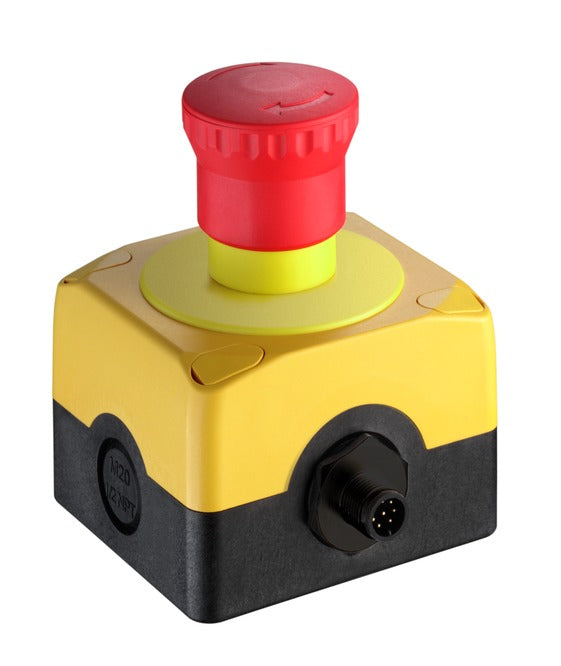

Leuze 63000004 ESB200-4TR-M12p E-Stop button
Part number: 63000004
$142.08
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Contact allocation: 2NC + 1NO
Cable entry: , M12
Connection: Connector
Dimensions: 80 mm x 102.3 mm x 72 mm
Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing
Installation position: Arbitrary
Switch type: E-Stop command device, EN ISO 13850
Button actuation force: 25 N
Degree of protection: IP 67, IP 69K
Certifications: c UL US
Cable entry: , M12
Connection: Connector
Dimensions: 80 mm x 102.3 mm x 72 mm
Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing
Installation position: Arbitrary
Switch type: E-Stop command device, EN ISO 13850
Button actuation force: 25 N
Degree of protection: IP 67, IP 69K
Certifications: c UL US
