Leuze

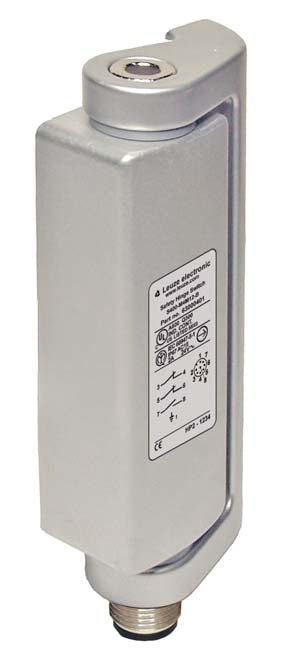

Leuze 63000401 S400-M4M12-B Safety hinge switch
Part number: 63000401
$183.15
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Contact allocation: 2NC + 1NO, Slow-action contact
Connection: Connector, M12, Metal, 8 -pin
Dimensions: 49 mm x 22.5 mm x 100.6 mm
Housing material: Metal, ZAMAK
Side of cable entry: From below (with left installation)
Switch type: Interlock device without guard interlocking, ISO 14119
Degree of protection: IP 67, IP 69K
Certifications: IMQ, c UL US
Connection: Connector, M12, Metal, 8 -pin
Dimensions: 49 mm x 22.5 mm x 100.6 mm
Housing material: Metal, ZAMAK
Side of cable entry: From below (with left installation)
Switch type: Interlock device without guard interlocking, ISO 14119
Degree of protection: IP 67, IP 69K
Certifications: IMQ, c UL US
