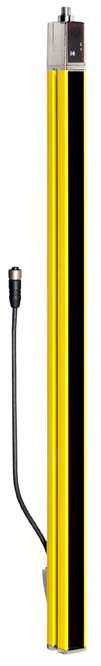

Leuze 68017315 MLC510R30-1500H/A Safety light curtain receiver
Part number: 68017315
$2,452.44
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Cascading: Host
Type: 4, IEC/EN IEC 61496
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 30 mm
Protective field height: 1,500 mm
Response time: 14 ms
Interface: AS-Interface Safety at Work
Connection: Connector, M12, Metal, 5 -pin
Dimensions: 29 mm x 1,566 mm x 53 mm
Type: 4, IEC/EN IEC 61496
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 30 mm
Protective field height: 1,500 mm
Response time: 14 ms
Interface: AS-Interface Safety at Work
Connection: Connector, M12, Metal, 5 -pin
Dimensions: 29 mm x 1,566 mm x 53 mm
