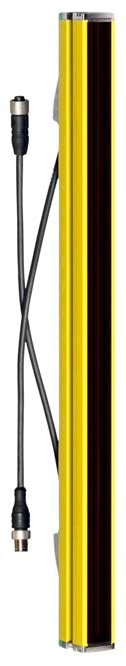

Leuze 68023906 MLC520R90-600MG Safety light curtain receiver
Part number: 68023906
$1,224.33
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Cascading: Middle Guest
Type: 4, IEC/EN IEC 61496
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 90 mm
Protective field height: 600 mm
Response time: 2 ms
Connection: Cable with connector, M12, Plastic, 8 -pin, 330 mm, PUR
Dimensions: 29 mm x 614 mm x 53 mm
Type: 4, IEC/EN IEC 61496
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 90 mm
Protective field height: 600 mm
Response time: 2 ms
Connection: Cable with connector, M12, Plastic, 8 -pin, 330 mm, PUR
Dimensions: 29 mm x 614 mm x 53 mm
