Leuze SO-000133 SYS-HAMT-P1-000-001 Safety relay

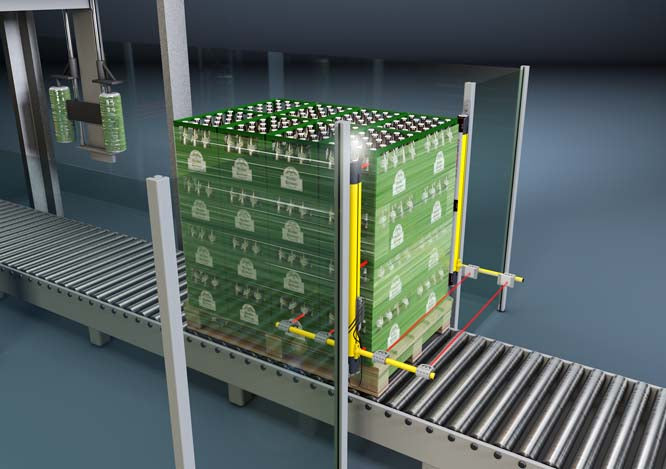

Application: IIII-muting as replacement for MSI-m/R, MSI-mE/R, MSI-mx/Rx, MSI-mxE/Rx
Functions: "Muting" signal output, "System error" signal output, Cross circuit monitoring, Dynamic contactor monitoring (EDM), selectable, Muting time monitoring (10 min / 100 h), PC diagnostics interface, Start/restart interlock (RES), Static contactor monitoring (EDM)
Performance Level (PL): e, EN ISO 13849-1
Category: Up to 4 (depending on the category of the upstream protective device), EN ISO 13849
Number of safety-related switching outputs (OSSDs): 3 Piece(s)
Safety-related switching output 1: Relay, NO
Safety-related switching output 2: Relay, NO
Safety-related switching output 3: Relay, NO
Connectible safety sensors (AOPDs): up to 2 AOPD type 4
Connectible electro-mechanical safety devices: Safety switches, E-Stop command devices, 1 and 2-channel
Connection: Screw terminal
Dimensions: 67.5 mm x 99 mm x 111.5 mm
