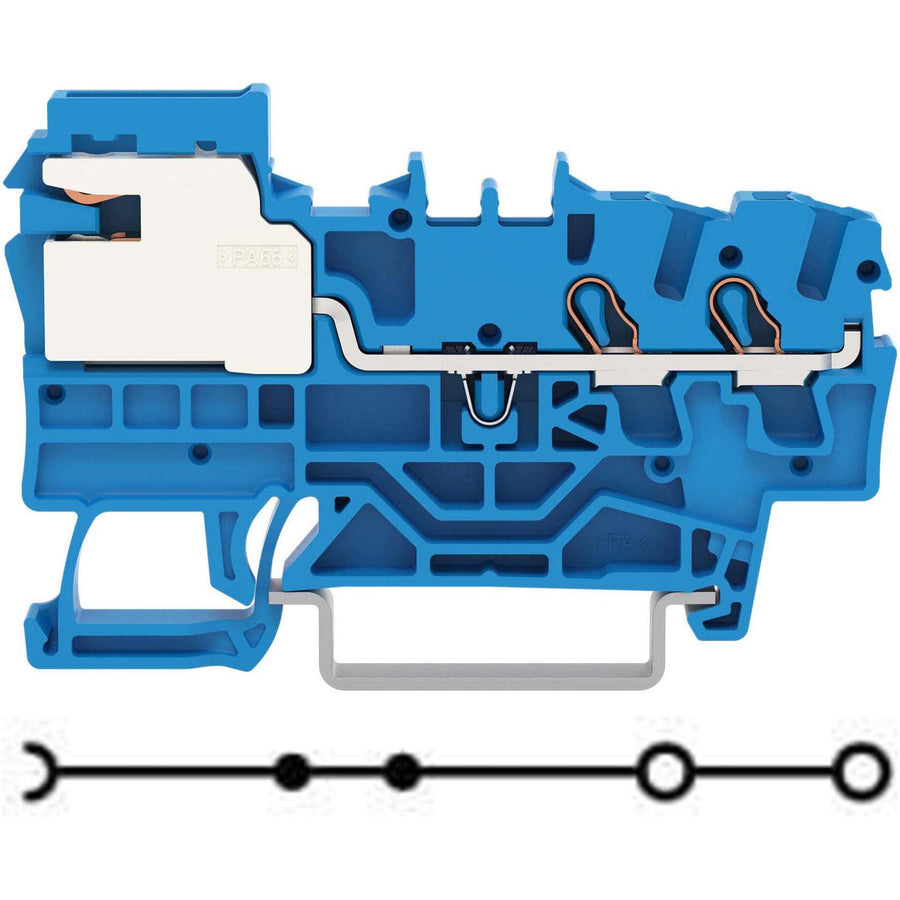

Neutral-through terminal block with 1-deck/level + slide-link neutral-disconnect + side/lateral and center marking slots - WAGO (2002 TOPJOB S series) - Blue - 1 N-disconnect link (N) / 2-wires (1 push-in + 1 push-in) (1+1) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 24A / 32A - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (5.2mm width) - equivalent to 20027214

Specifications

• Primary brand: WAGO
• Functions: Neutral-through terminal block
• Design: 1-deck/level|slide-link neutral-disconnect|side/lateral and center marking slots|2 jumper slots
• Poles: 1 N-disconnect link (N)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 24A|(IEC) 32A
• Color: Blue
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 250V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #17AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: DIN-35 rail
• Dimensions: H67.3mm x W5.2mm x D38.1mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-38
• GTIN code: 4045454802295
• ETIM code: EC001257
• Customs Tariff Number: 85365080000
• Order code / Manufacturer SKU: 2002-7214
• Manufacturer product status: Commercialized
• Equivalent to: 20027214
• EAN code: 4045454802295
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7941|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-124163|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Neutral-through terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: PL
• Customs tariff number: 85365080000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-38
• eCl@ss 9.0: 27-14-11-38
• ETIM 8.0: EC001257
• ETIM 9.0: EC001257
• GTIN: 4045454802295
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 1 … 4 mm² / 17 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 1.362W
• Power Loss - Rated current I_N for specified power loss: 32A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 32A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: blue
• Fire load: 0.19MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 10.2g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 38.1 mm / 1.5 inches
• Height: 67.3 mm / 2.65 inches
• Width: 5.2 mm / 0.205 inches
